| Name | Steel structure | |
| Dimensions | Length | H beam: 4000-15000mm | |
| Thickness | web plate: 6-32mm
wing plate: 6-40mm | |
| Height | 200-1200mm | |
| Color | According to customers | |
| Size | MOQ is 300 m2, width * length * eave height, | |
| Advantages | 1. Lower cost but beautiful outlook.
2. High safety performance.
3. easy to assemble and dismantle
4. manufacture under complete quality control system---ISO9001
5. installation with instruction of experienced engineers
6. Non-pollution. |
| Main components | Base | Cement and steel foundation bolt | |
| Main frame | H beam | |
| Material | Q235B, Q345B or others as buyers' requests. | |
| Purlin | C or Z purlin: Size from C120~C320, Z100~Z20 | |
| Bracing | X-type or other type bracing made from angle, round pipe | |
| Bolt | Plain bolt and High-strength bolt | |
| Roof & wall | Sandwich panel or color plate | |
| Door | Sliding or rolling door | |
| Window | Aluminium alloy window | |
| Surface | Two times of Anti-rust Painting or Hot Dip Galvanized | |
| Sheet | 0.5mm or 0.6mm galvanized sheet | |
| Accessories | Semi-transparent skylight belts, Ventilators,
down pipe, galvanized gutter, etc | |
| Usages | 1. workshop, warehouse, plant
2. Steel web frame structure
3. Steel H-column and steel H-beam
4. Portal frame products
5. High rise building project
6. Others steel structure buildings | |
| Packing | Main steel frame without packing load in 40' OT,
roof and wall panel load in 40' HQ! | |

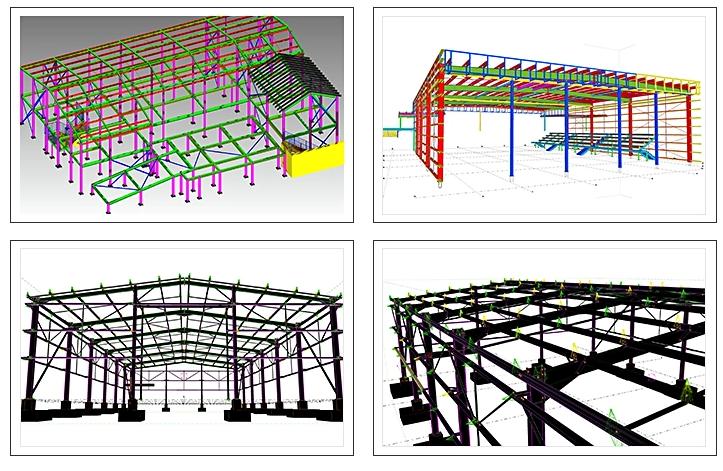

| Drawing | According to drawings or according to customer ' s requirement. | |
Design Parameters | If you need we design for you, please supply us the following parameter
together with detail size:
1) length, width, height, eave height, roof pitch, etc
2) wind load, snow load, raining condition, seismic requirements, etc
4) Demands for doors and windows
5)Other information if necessary |
